Formula 1

StreamlinesBothWheels_noTranslucency

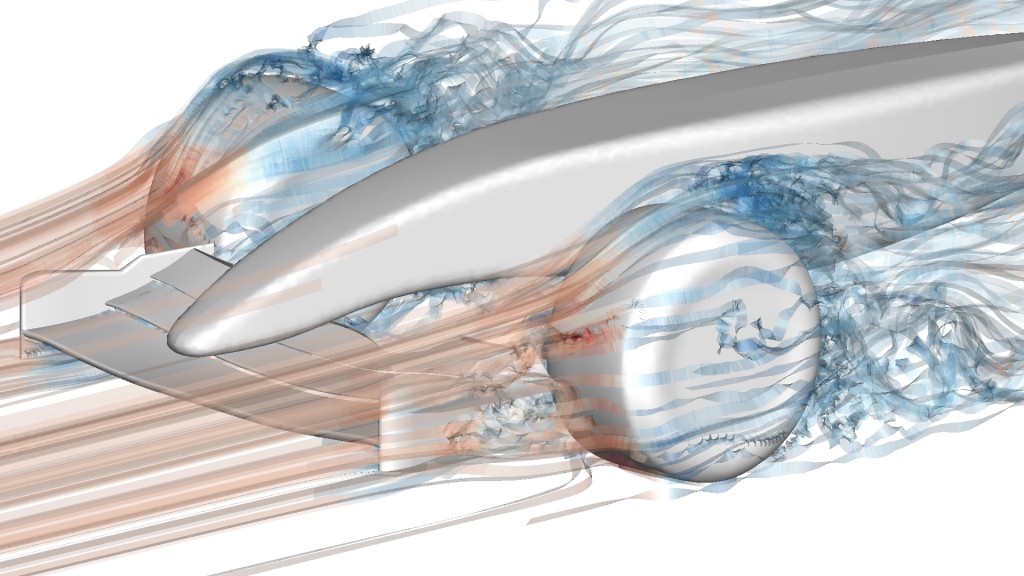

Nektar++ has been used to investigate the flow dynamics and vortex generation behind the front section of a Formula 1 racing car. The above image shows the flow trajectory, coloured by pressure, at a Reynolds number of 220,000, based on the chord of the main-plane of the front-wing. The simulation has 13 million degrees of freedom at polynomial order of P=3.
